Staging Accessories
We carry fiberglass, aluminum, wood, and chicken ladders.
Accessories

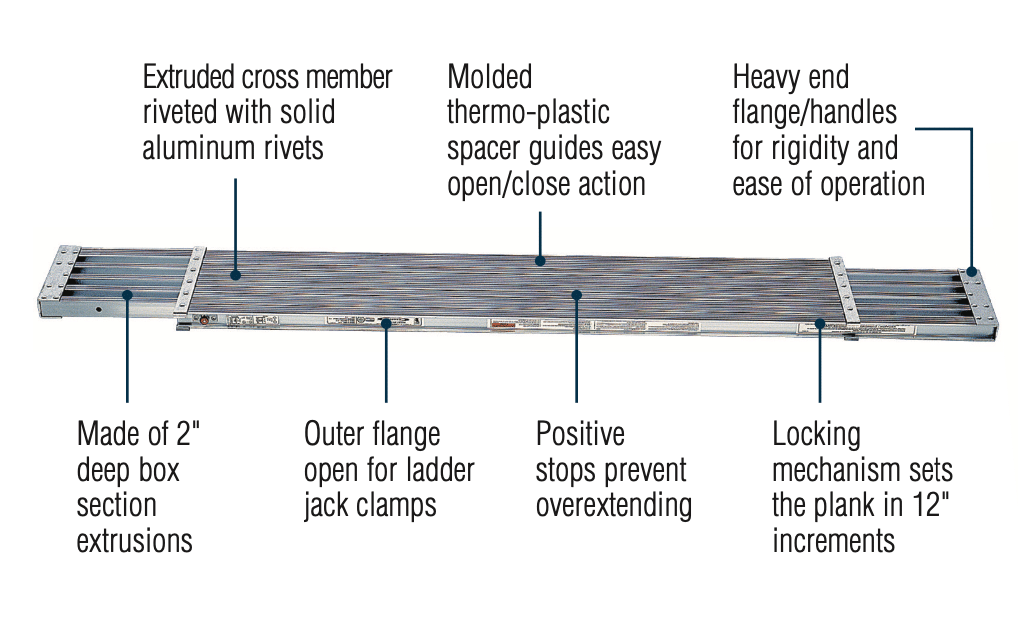

PA200 Series
For use on stepladders, telescoping multiladders, extension trestle ladders and extension and single ladders equipped with ladder jacks.
Type
Aluminum Extension Plank
Load Capacity
250 lbs
- Extruded cross member riveted with solid aluminum rivets
- Molded thermo-plastic spacer guides easy open/close action
- Heavy end flange/handles for rigidity and ease of operation
- Made of 2″ deep box section extrusions
- Outer flange open for ladder jack clamps
- Positive stops prevent overextending
- Locking mechanism sets the plank in 12″ increments
Note: When assembled as scaffold or staging, these planks must be used in conjunction with suitable guard rail protection in compliance with applicable governmental codes, ordinances, regulations and safe practice.
Specifications
| Model | Length | Width | Rails | Cu. Ft. | Ship Wt. |
|---|---|---|---|---|---|
| PA206 | 9' Open 6' Close | 14" | 1-1/8" x 2" Inner 1-7/8" x 2" Outer | 1.5' | 31 lbs |
| PA208 | 13' Open 8' Close | 14" | 1-1/8" x 2" Inner 1-7/8" x 2" Outer | 2.0' | 40.5 lbs |
| PA210 | 17' Open 10' Close | 14" | 1-1/8" x 2" Inner 1-7/8" x 2" Outer | 2.5' | 56.5lbs |
Accessories

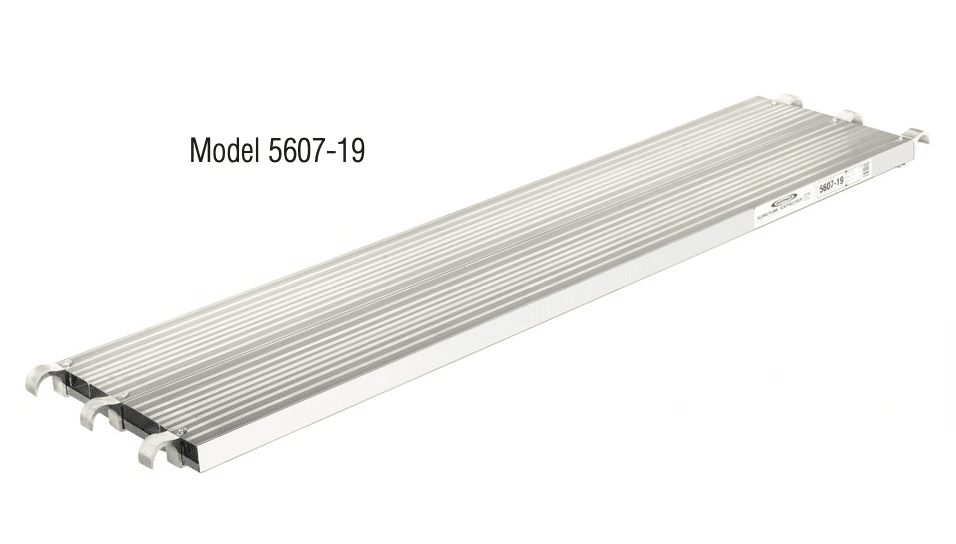

5600 Series
For use with Steel Scaffolds
Type
2-Piece Extruded Aluma-Board™
Specifications
| Model | Duty Rating | Width | Rails | Ship Wt. |
|---|---|---|---|---|
| PA206 | 75 lbs | 19-1/16" | 7' Side Length 2" Side Depth | 30 lbs |
Accessories, Aluminum

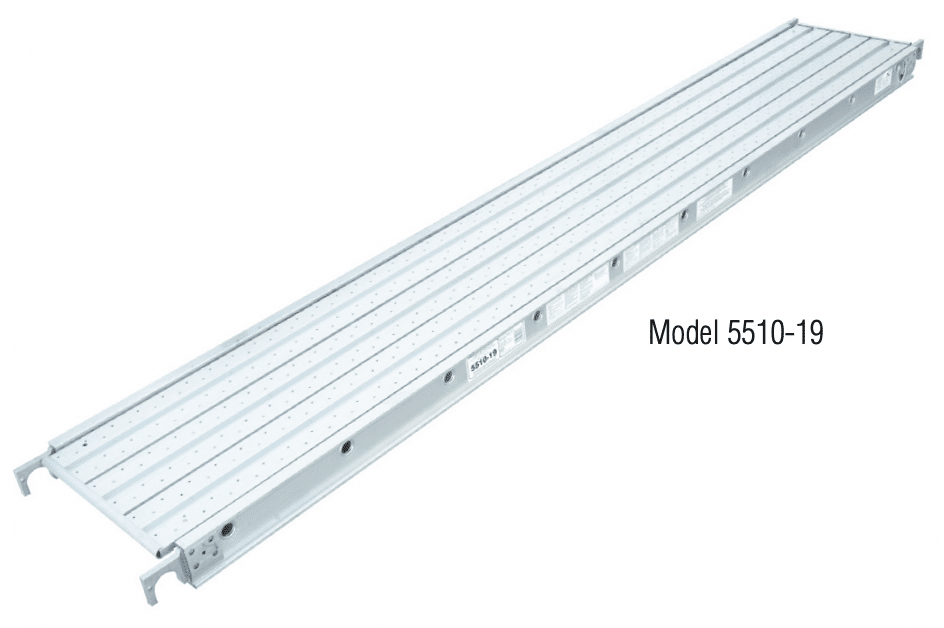

5500 Series
For use with Steel Scaffolds
Type
Aluminum Decked Aluma-Plank®
Load Capacity
250 lbs
- 19-1/16 inch wide, 10-foot long aluminum decked plank
- Maximum load of 250lb (75 lb/sq ft) includes person and materials
Specifications
| Model | Duty Rating | Width | Rails | Ship Wt. |
|---|---|---|---|---|
| 5507-19 | 75 lbs | 19-1/16" | 7' Side Length 3" Side Depth | 25 lbs |
| 5508-19 | 75 lbs | 19-1/16" | 8' Side Length 4" Side Depth | 34 lbs |
| 5510-19 | 75 lbs | 19-1/16" | 10' Side Length 4" Side Depth | 43 lbs |
Accessories, Wood

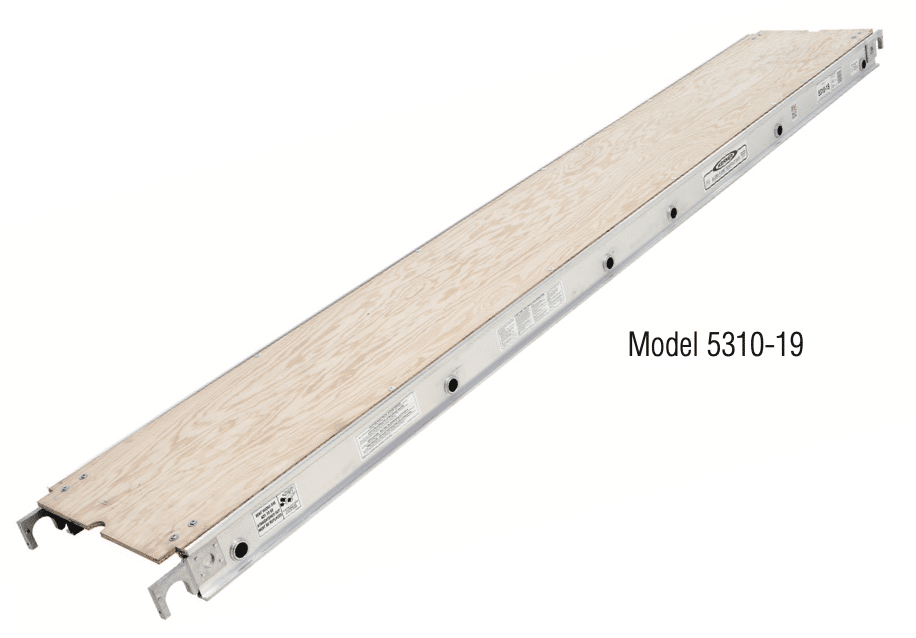

5300 Series
For use with Steel Scaffolds
Type
Plywood Decked Aluma-Plank®
Load Capacity
250 lbs
- 19-1/16in wide, 10ft long plywood decked plank
- Maximum load 250lb including person and materials
Specifications
| Model | Duty Rating | Width | Rails | Ship Wt. |
|---|---|---|---|---|
| 5307-19 | 75 lbs | 19-1/16" | 7' Side Length 3.5" Side Depth | 27 lbs |
| 5308-19 | 75 lbs | 19-1/16" | 8' Side Length 4.5" Side Depth | 38 lbs |
| 5310-19 | 75 lbs | 19-1/16" | 10' Side Length 4.5" Side Depth | 47 lbs |
Accessories, Aluminum

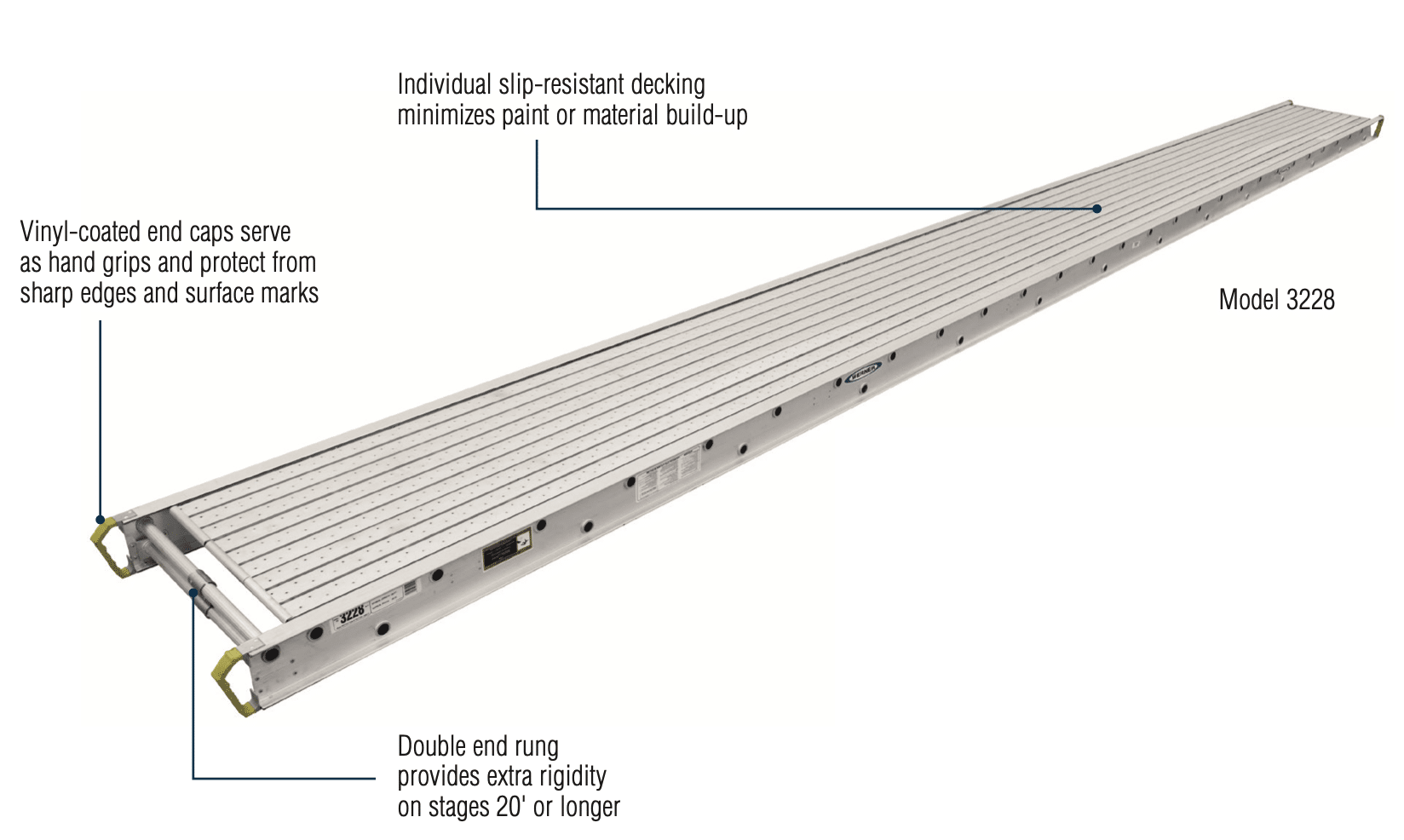

Aluminum Task Master® Stages
Ideal for ladder jack applications, swing stages, or catwalks
- Twist-Proof® Stage Design
- Individual slip-resistant decking minimizes paint or material build-up
- Vinyl-coated end caps serve as hand grips and protect from sharp edges and surface marks
- Double end rung provides extra rigidity on stages 20′ or longer
Accessories, Aluminum

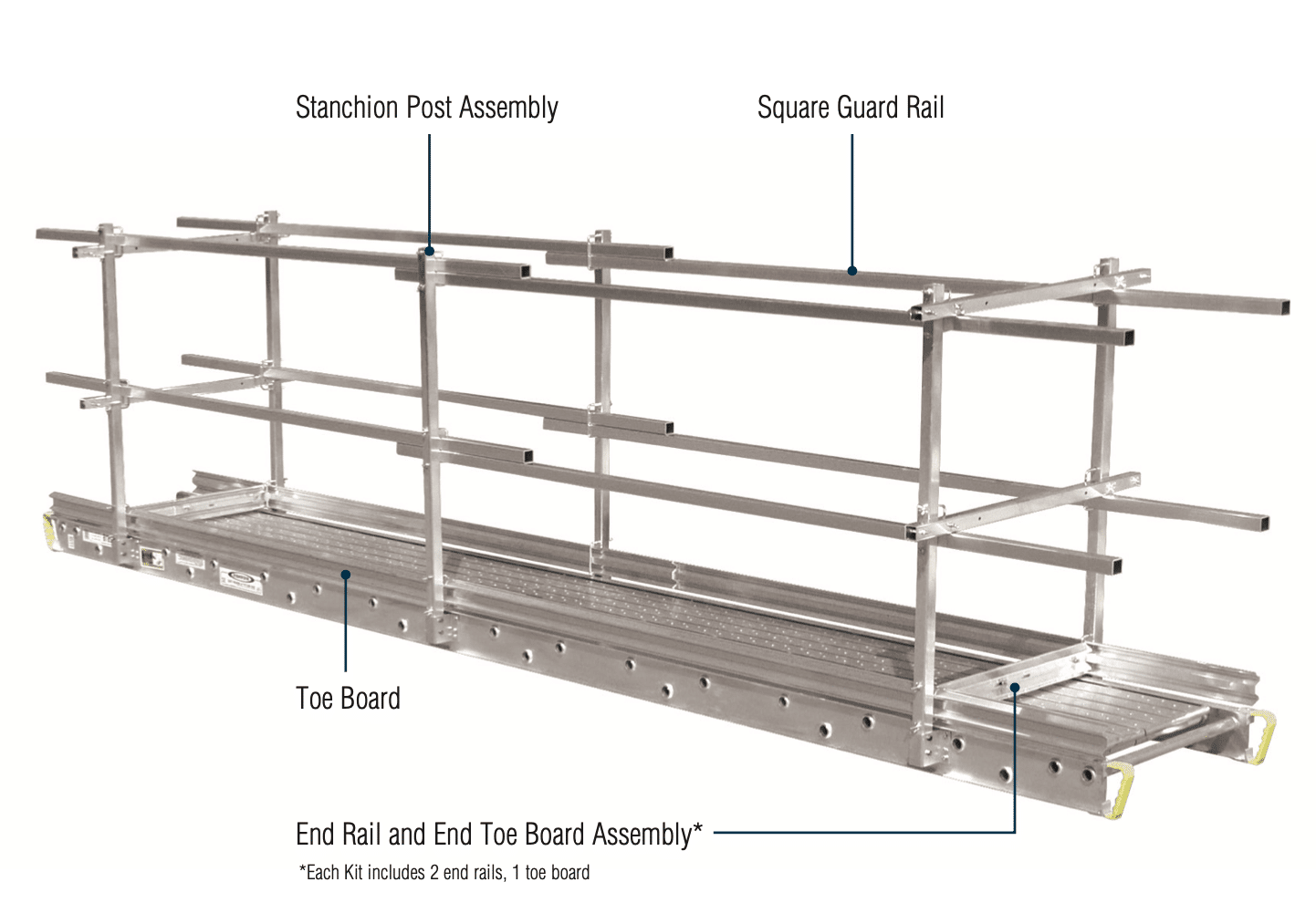

Guard Rail Systems
Square modular guard rail system
System Sizing: How do I size a guard rail system?
The following steps show how to size a single-sided, three-sided, and four-sided guard rail system:
- Determine the stage length and width.
- Determine whether guardrail system is one-, two-, three-, or four -sided.
- Read across the row to determine component requirements.
- If ordering a three- or four-sided system, order two ERT-N for 12″ and 14″ wide stages, and two ERT-W for all stages 20″ wide or greater.
Note: If ordering a two sided system, double the single sided component requirement.
Extension Ladder Accessories
All accessories, attachments, and replacement parts are designed and tested for Werner Co. products only.
| Attached Accessories | Description | 4-Digit Designator |
|---|---|---|
| A61 | Combination Spur-Hoop Shoe | 0038 |
| A71 | Padded Fixed V-Rung | 0005 |
| A72 | Adjustable Pole Strap | 0008 |
| A74 | Cable Hooks | 0003 |
| A78 | Fly Section Shoe | 0058 |
| A81 | Adjustable Pole Lashes | 0089 |
| A83 | Rubber Padded Shoe | 0049 |
| A86 | Spur Shoe | 0007 |
| A92 | Cable Hook and V-Rung Assembly | 0002 |
| APK70 | LeveLok® Ladder Leveler with 2 base units | 0086 |
| APK80 | Level-Master Automatic Ladder Levelers | 0004 |
How it works
Please follow these steps and refer to the chart for purchasing a ladder accessory that is factory installed.
- Locate the ladder’s model number and add an X on to the end of the model number.
- Use the chart provided and find the accessory you want attached. Add the 4 digit designator to the end of the ladder model number after the X.
If you have a question or need assistance, please call customer service at 1-888-523-3371.
Staging Information
Task-Master® STages
Ideal for the jack applications, swing stages, or catwalks.
- Twist-Proof® Stage Design
- Individual slip-resistant decking minimizes paint or material build up.
- Double end rung provides extra rigidity on stages 20' or longer-standard on stages with 5" or 6" rails.
- Vinyl-coated end caps serve as hand grips and protect from sharp edges and surfaces marks.
Staging Information
Decorator Planks
1 person, 250 lbs rated
| Model | Width | Side Rail Length | Side Rail Depth | Side Rail Flange | Ship Wt. (lbs) |
|---|---|---|---|---|---|
| 2008 | 12" | 8' | 4" | 1-3/8" | 25 |
| 2012 | 12" | 12' | 4" | 1-3/8" | 36 |
| 2016 | 12" | 16' | 4" | 1-3/8" | 48 |
| 2020 | 12" | 20' | 5" | 1-3/8" | 65 |
| 2024 | 12" | 24' | 5" | 1-3/8" | 78 |
Scaffold Planks
2 Person, 500 lbs rated
| Model | Width | Side Rail Length | Side Rail Depth | Side Rail Flange | Ship Wt. (lbs) |
|---|---|---|---|---|---|
| 2316 | 12" | 16' | 4" | 1-3/8" | 48 |
| 2320 | 12" | 20' | 6" | 1-3/8" | 79 |
| 2324 | 12" | 24' | 6" HvyDty | 1-3/8" | 112 |
| 2328 | 12" | 30' | 6" HvyDty | 1-3/8" | 131 |
| 2330 | 12" | 30' | 6" HvyDty | 1-3/8" | 140 |
| 2332 | 12" | 32' | 6" HvyDty | 1-3/8" | 149 |
| 2408 | 14" | 8' | 4" | 1-3/8" | 27 |
| 2412 | 14" | 12' | 4" | 1-3/8" | 40 |
| 2416 | 14" | 16' | 5" | 1-3/8" | 58 |
| 2420 | 14" | 20' | 6" | 1-3/8" | 85 |
| 2424 | 14" | 24' | 6" | 1-3/8" | 109 |
| 2428 | 14" | 28' | 6" | 2" | 127 |
| 2430 | 14" | 30' | 6" HvyDty | 2" | 171 |
| 2432 | 14" | 32' | 6" HvyDty | 2" | 182 |
Stage Platforms
2 Person, 500 lbs rated
| Model | Width | Side Rail Length | Side Rail Depth | Side Rail Flange | Ship Wt. (lbs) |
|---|---|---|---|---|---|
| 2508 | 20" | 8' | 4" | 1-3/8" | 33 |
| 2512 | 20" | 12' | 4" | 1-3/8" | 48 |
| 2516 | 20" | 16' | 5" | 1-3/8" | 70 |
| *2520 | 20" | 20' | 6" | 1-3/8" | 102 |
| *2524 | 20" | 24' | 6" | 1-3/8" | 121 |
| *2528 | 20" | 28' | 6" | 2" | 157 |
| *2530 | 20" | 30' | 6" | 2" | 168 |
| *2532 | 20" | 32' | 6" | 2" | 179 |
| *2536 | 20" | 36' | 6" HvyDty | 2" | 243 |
| *2539 | 20" | 39' | 6" HvyDty | 2" | 264 |
| 2608 | 24" | 8' | 4" | 1-3/8" | 38 |
| 2612 | 24" | 12' | 4" | 1-3/8" | 56 |
| 2616 | 24" | 16' | 5" | 1-3/8" | 81 |
| *2620 | 24" | 20' | 6" | 1-3/8 | 115 |
| *2624 | 24" | 24' | 6" | 1-3/8" | 138 |
| *2628 | 24" | 28' | 6" | 2" | 168 |
| *2630 | 24" | 30' | 6" | 2" | 180 |
| *2632 | 24" | 32' | 6" | 2" | 191 |
| 2708 | 28" | 8' | 4" | 1-3/8" | 41 |
| 2712 | 28" | 12' | 4" | 1-3/8" | 60 |
| 2716 | 28" | 16' | 5" | 1-3/8" | 87 |
| *2720 | 28" | 20' | 6" | 1-3/8" | 124 |
| *2724 | 28" | 24' | 6" | 1-3/8" | 147 |
| *2728 | 28" | 28' | 6" | 2" | 187 |
| *2732 | 28" | 32' | 6" | 2" | 213 |
3 Person, 750 lbs rated
| Model | Width | Side Rail Length | Side Rail Depth | Side Rail Flange | Ship Wt. (lbs) |
|---|---|---|---|---|---|
| 3112 | 24" | 12' | 4" | 2" | 64 |
| 3116 | 24" | 16' | 5" | 2" | 92 |
| *3120 | 24" | 20' | 6" | 2" | 115 |
| *3124 | 24" | 24' | 6" HvyDty | 2" | 145 |
| *3128 | 24" | 28' | 6" HvyDty | 2" | 204 |
| *3132 | 24" | 32' | 6" HvyDty | 2" | 236 |
| *3136 | 24" | 36' | 6" HvyDty | 2" | 323 |
| *3139 | 24" | 39' | 6" HvyDty | 2" | 365 |
| 3208 | 28" | 8' | 4" | 2" | 48 |
| 3212 | 28" | 12' | 4" | 2" | 71 |
| 3216 | 28" | 16' | 5" | 2" | 103 |
| 3220 | 28" | 20' | 5" | 2" | 128 |
| *3224 | 28" | 24' | 6" | 2" | 161 |
| *3228 | 28" | 28' | 6" HvyDty | 2" | 220 |
| *3232 | 28" | 32' | 6' HvyDty | 2" | 251 |
| *3236 + | 28" | 36' | 6" HvyDty | 2" | 344 |
| *3239 + | 28" | 39' | 6" HvyDty | 2" | 388 |
* Includes set of double rungs at the end of stage
+ Includes reinforcing channel
+ Includes reinforcing channel
Guard Rail Systems
Stanchion Post Assembly
| Kit Number | Length | Package Qty | Ship Wt. (lbs) |
|---|---|---|---|
| SP2-1 | - | 2 | 16 |
| SP3-1 | - | 3 | 24 |
End Rail Assembly
| Kit Number | Length | Package Qty | Ship Wt. (lbs) |
|---|---|---|---|
| ER28-1 | 28" | 4 | 14 |
| ER-34-1 | 34" | 4 | 15.5 |
| ER40-1 | 40" | 4 | 17 |
Return End Rail Assembly
| Kit Number | Length | Package Qty | Ship Wt. (lbs) |
|---|---|---|---|
| RR24-1 | - | 4 | 6.5 |
Guard Rail
| Kit Number | Length | Package Qty | Ship Wt. (lbs) |
|---|---|---|---|
| GR06-1 | 6" | 1 | 5 |
| GR08-1 | 8" | 1 | 5 |
| GR12-1 | 12" | 1 | 5 |
Guard Rail Coupler Assembly
| Kit Number | Length | Package Qty | Ship Wt. (lbs) |
|---|---|---|---|
| RC-1 | - | 1 | 1.5 |
